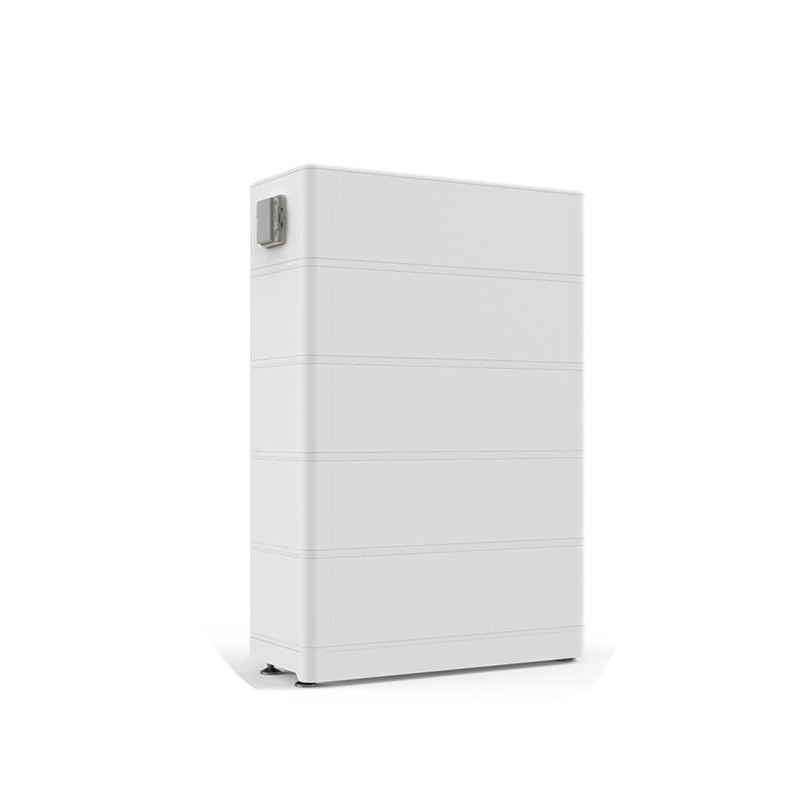

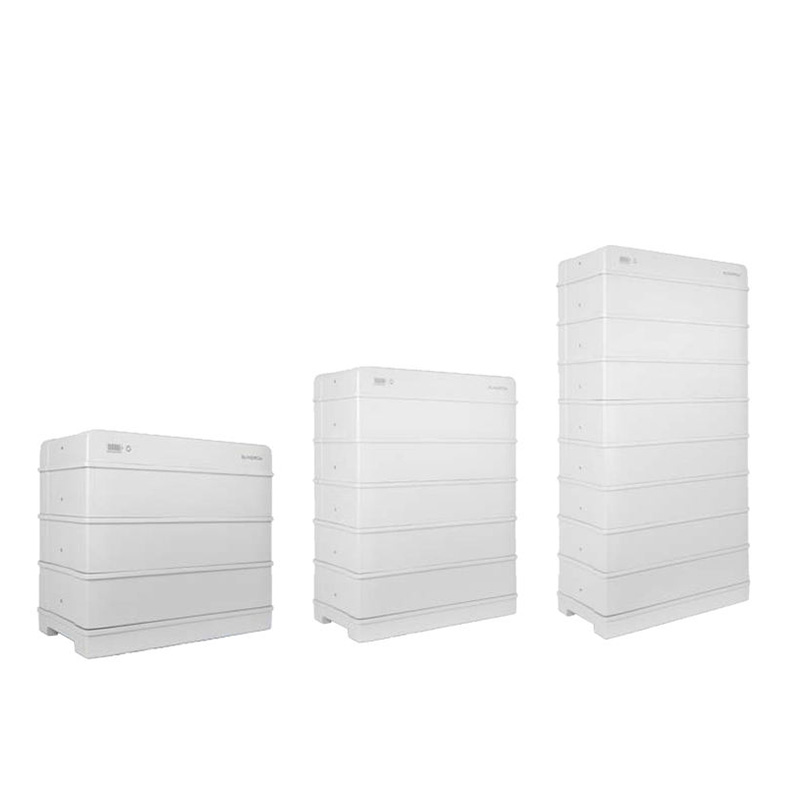

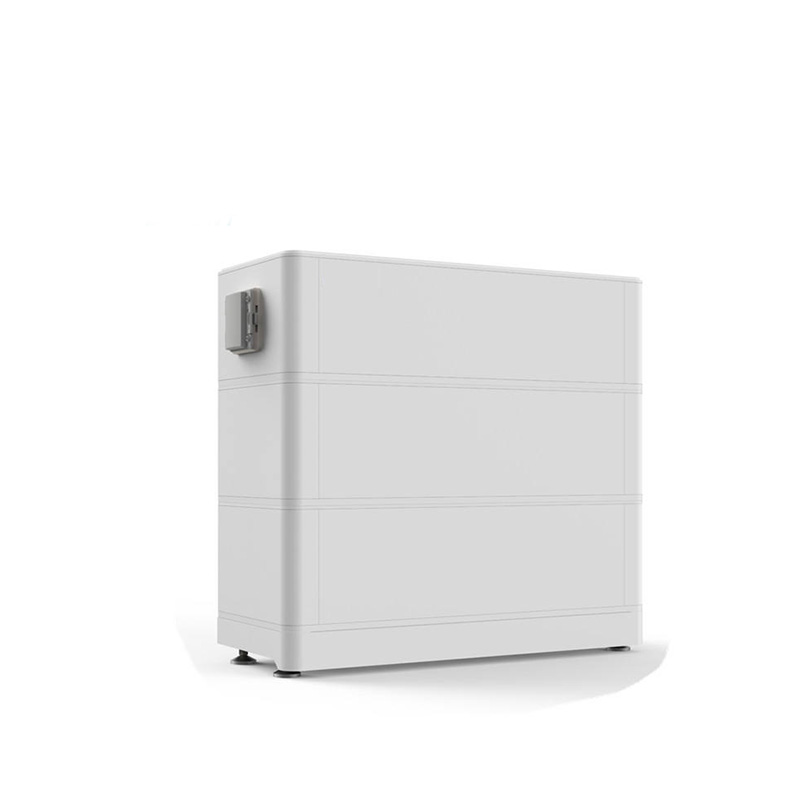

High Voltage Stack Battery ESS XP-EV Series

Product Features：

High Voltage Battery for charging electrical vehicle

Support multiple communication and multiple inverter communication matching

Modular design to save the installation space

Convenient operation to save the installation time,

Capacity Covering: 10-25KWH

Support connection in parallel and capacity expansion.

Easy installation

Message

Portable Power Station

Household ESS Series

Wall Mounted ESS HP Series Low Voltage Stack Battery ESS TP Series High Voltage Stack Battery ESS XP-HV Series On-grid & Off-grid Integrated ESS XP-GV Series

Solar panels

Accessories

Product Details

Product Specification

Model	XP-EV-10KW	XP-EV-15KW	XP-EV-20KW	XP-EV-25KW
Nominal Voltage	204.8V (64S)	307.2V (96S)	409.6V (128S)	512V （160S)
Capacity	50Ah	50Ah	50Ah	50Ah
Storage Power	10KWh	15KWh	20KWh	25KWh
IR （AC）	≤ 80mΩ	≤ 100mΩ	≤ 120mΩ	≤ 150mΩ
Cycle Life	6000cycles
Design Life	≥ 10 years
Charging Voltage	228V± 2V	340V± 2V	450V± 2V	560V± 2V
Max working Current	100A
Discharge Cut-off Voltage	180V± 2V	270V± 2V	350V± 2V	440V± 2V
OperationTemperature Range	Charge 0 ℃~60℃
OperationTemperature Range	Discharge -20℃~60℃
Storage Temperature	-20℃~40℃
Size（mm）	630185930	6301851265	6301851600	6301851935
Weight Approximate	130kg	180kg	230kg	280kg
Communication	RS232 -PC,RS485 (B ) -PC
Communication	RS485 (A ) -Inverter, Canbus -Inverter
Certification	UN38.3,MSDS,UL1973 (Cell),IEC62619 (Cell)
